HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine Factory

Home / Products / Stainless steel fine wire drawing machine / HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine
HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine
  • HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine
  • HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine
  • HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine
  • HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine

HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine

+86-15006209216 Contact Us
The HXE-32DBW Stainless Steel Ironed Cast Wire Drawing Machine is a cutting-edge piece of equipment designed to transform raw wire into a refined, high-quality product. This machine is specifically engineered for stainless steel wire drawing, offering exceptional precision and efficiency. Crafted from high-quality stainless steel, this machine is built to withstand the rigors of heavy-duty wire drawing operations. Its ironed cast structure provides exceptional strength and stability, guaranteeing long-lasting performance.
PREV：HXE-24VB-X Stainless Steel Wire Drawing Machine
NEXT：No next product
  • Description
  • Machine type HXE-12DBW HXE-24DBW HXE-32DBW HX24DB HX14DB
    Inverter control Dual Inverter control
    Wire finished Φ1.0-Φ0.4mm Φ0.25-Φ0.1mm Φ0.25-Φ0.07mm Φ0.1-Φ0.05mm Φ0.25-Φ0.5mm
    Wire inlet Φ1.6-Φ0.8mm Φ1.2-Φ0.6mm Φ1.2-Φ0.4mm Φ0.45-Φ0.15mm Φ0.6-Φ1.2mm
    Drawing line speed 600mpm 800mpm 1000mpm 800mpm 80Ompm
    slip ratio of m/c 15%＋8% 15%+13% 13%+6% 10.5%+8% 13%+8%
    Final slip rotio 0%-2% 0%-2% 0%-2% 0%-2% 0%-2%
    Frame Welded by steel plate Ironed cast

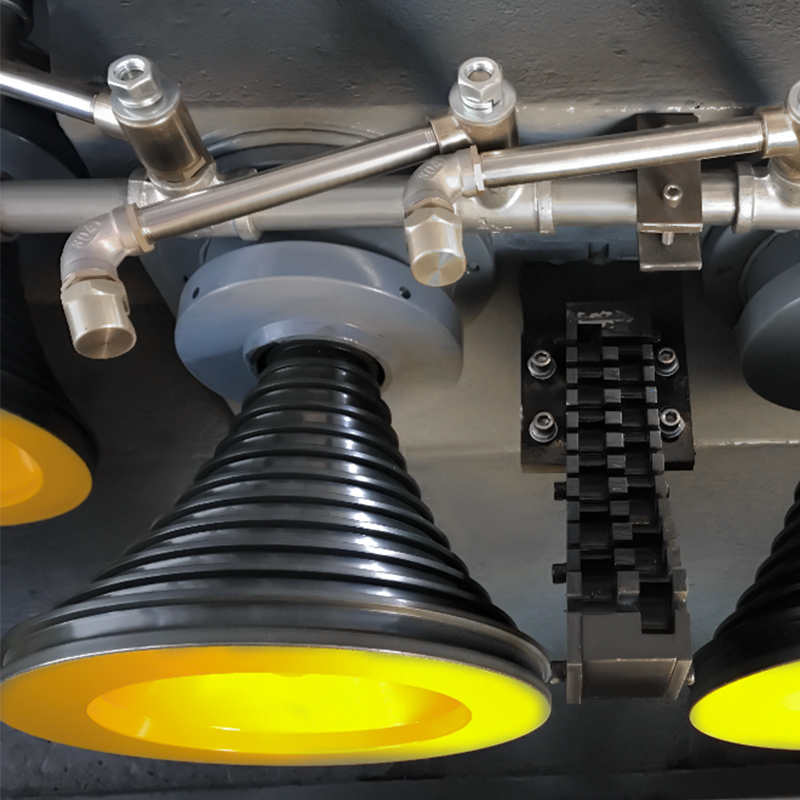

    Capstan plasma capstan
    Capstan dia.(Max.) Φ310mm Φ230mm Φ194mm Φ194mm Φ316mm
    Fix speed capstan dia. Φ265mm Φ230mm Φ159mm Φ159mm Φ268mm
    Spooler bobbin size O.D.p500mm/max O.D.p300mm/max O.D.4300mm/max O.D.p300mm/max O.D.p380mm/max
    Bobbin loading& unloading type Shaft type

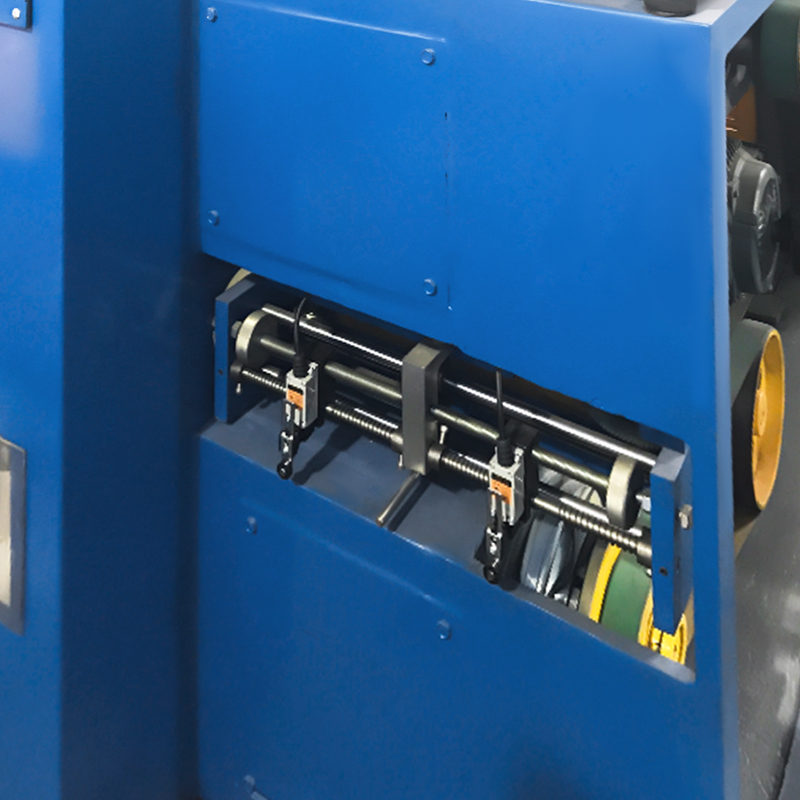

    Traversing unit Motor type
    Main motor 22.5KW 11KW 15KW 7.5KW 15KW
    Spooler motor 11KW 3.7KW 3.7KW 2.2KW 3.7KW
    Tran smission type By timing belts By flat belts By timing belts
    Revise sytem Detecrting syneronous contret spooler
    Detecting device Weight balance by swing arm
    Tension control Weight balance type
    Max.loading capacity 200kg/max 30kg/max 30kg/max 30kg/max 50kg/max
    Brake Magnetic brake
    Lubrication type for bearing Without oil
    Lubrication type Water immersion type Spray type Water immersion type
    Power source 380V 50/60HZ
    Lubrication oil capacity
    6oLiter/Minute
    4OLiter/Minute
    40Liter/Minute
    40Liter/Minute
    40Liter/Minute
    Machine dimension 1500×1600×1900 1300×1800×2000 2600×1000×1650 1500×1300×180o 1400×1250×1800
    Machine weight 2200KG 2500KG 2000KG 2000KG 2000KG

Related Products

Suzhou Hengxie Machinery Co., Ltd.

We are an enterprise specializing in the research, development, production and sales of cable equipment series products.

Suzhou Hengxie is China HXE-32DBW Stainless Steel One-Piece Casting Type Wire Drawing Machine Manufacturers. Our main products of company are as following: 9, 13 dies rod breakdown machine and 17 dies medium drawing machine (chain or ground gear transmission type), medium and large drawing machine with continuous annealer, 14 dies medium and fine wire drawing machine, 22 or 24 dies fine wire drawing machine, 20 or 24 dies super fine wire drawing machine, annealing and tinning machine, medium wire drawing machine with double spooler, and hing speed auto stranding machine, etc.Our products include both domestic market and oversea market such as India, Brazil,Egypt, Malaysia, Korea, Vietnam, Syria, Kenya, Argentina, South Africa and Iran. With the concept of stable quality and mutual development, Hengxie welcomes all customers from the world to create a sincere cooperation and win-win benefit in the future.

Do You Have Any Question?

If you have any questions, please do not hesitate to contact us!

Suzhou Hengxie Machinery Co., Ltd.
News & Events
Read More

Excellent product with exquisite craftsmanship

  • Factory
    Company real picture
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Factory equipment
  • Factory
    Factory equipment
  • Factory
    Factory equipment

Industry knowledge

What are the important issues technical specifications and parameters to bear in thoughts at the same time as deciding on a Stainless Steel One-Piece Casting Type Wire Drawing Machine?
Choosing the right Wire Drawing Machine is pivotal for manufacturers within the twine enterprise, and the technical specifications play a vital characteristic in this option manner. The Stainless Steel One-Piece Casting Type Wire Drawing Machine gives numerous configurations and skills, tailor-made to accommodate particular twine sizes, line speeds, and cloth specs. Below are the number one technical parameters to consider while assessing and deciding on this machine for your unique necessities.
Wire Finished Sizes:
The device is designed to cope with quite a number of wire diameters, from Φ1.0mm to Φ0.4mm, Φ0.25mm to Φ0.1mm, Φ0.25mm to Φ0.07mm, Φ0.1mm to Φ0.05mm, and Φ0.25mm to Φ0.5mm. Understanding your production wishes and the appropriate cord sizes you figure with is vital whilst evaluating the gadget's compatibility.
Wire Inlet Sizes:
The Wire Drawing Machine comprises several cord inlet sizes, beginning from Φ1.6mm to Φ0.8mm, Φ1.2mm to Φ0.6mm, Φ1.2mm to Φ0.4mm, Φ0.45mm to Φ0.15mm, and Φ0.6mm to Φ1.2mm. This parameter is essential as it determines the preliminary twine sizes that may be processed through the device.
Drawing Line Speed:
The device operates at exclusive drawing line speeds, providing flexibility in production. It can achieve speeds of 600mpm, 800mpm, 1000mpm, 800mpm, and 800mpm, depending on the wire size being processed. Line tempo is an essential factor affecting productivity and overall performance.
Slip Ratios:
Understanding the slip ratios of the machine, which vary from 15% 8%, 15% 13%, 13% 6%, 10.5% 8%, and 13% 8% for wonderful wire sizes, is important. The slip ratio affects the drawing method and affects the satisfaction and homes of the drawn cord.
Frame and Capstan Details:
The body creation performs a position inside the machine's balance and longevity. This system is available in each welded steel plate frame and ironed solid frame. The capstan, along with the plasma capstan, capstan diameter, fixed speed capstan diameter, and other capstan specs, impacts the cord drawing method and determines the device's performance and ordinary performance.
Spooler Bobbin Size:
The bobbin size varies depending on the completed twine diameter, with extraordinary outer diameters centered for every duration range. Considering the bobbin duration is important for figuring out the ability and dealing with the drawn wire.
Selecting the proper Wire Drawing Machine entails a whole knowledge of the technical parameters aligned together with your specific production needs. The capability of the gadget to deal with diverse wire sizes, drawing line speeds, slip ratios, frame and capstan specifications, and spooler bobbin sizes are pivotal factors to consider for the pinnacle of the line performance, overall performance, and quality in the cord drawing manner.
When evaluating the Stainless Steel One-Piece Casting Type Wire Drawing Machine, align the tool's technical parameters together with your manufacturing necessities to ensure seamless and inexperienced cord drawing operations.
