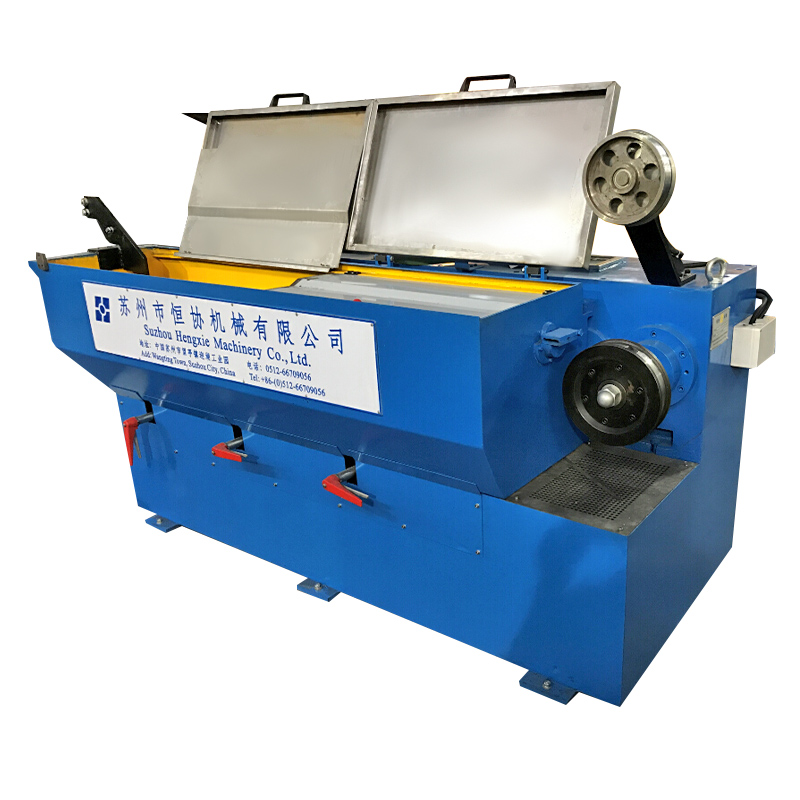

HXE-17DS Intermediate Copper Wire Drawing Machine

HXE-17DS Intermediate Copper Wire Drawing Machine

+86-15006209216 Contact Us
The HXE-17DS intermediate copper wire drawing machine is widely used in the production of electrical wiring for various applications, including residential, commercial, and industrial projects. Its ability to produce high-quality copper wire makes it a preferred choice for manufacturers in the electrical industry.The HXE-17DS is also suitable for manufacturing telecommunication cables, which require precise wire drawing to ensure optimal signal transmission.
PREV：No previous product
NEXT：HXE-17D Medium Drawing Machine-chain Type
  • Description
  • Machine type HXE-17MDS HXE-17DS HXE-17D HXE-17MD
    Control system Traditional analog type
    Inverter control Dual Inverter control
    outlet diameter Φ0.4-Φ1.2mm Φ0.4-Φ1.6mm Φ0.4-Φ1.2mm Φ0.4-Φ1.2mm
    Inlet diameter Φ2.5-Φ3.2mm Φ2.5-Φ3.2mm Φ2.6-Φ3.2mm Φ2.6-Φ3.2mm
    Max. line speed 1500mpm/max 2000mpm/max 1200mpm/max 1200mpm/max
    Die Number 17 17 17 17
    Slip ratio of m/c 15%+10% 20%+15% 18%+12.5% 15%+10%
    Frame Weled by steel plate Iron cast
    apstan Ceramic plasma or Tungsten
    Max.capstan diameter Φ254mm Φ250mm Φ260mm Φ254mm
    Fix speed capstan diameter Φ252mm Φ250mm Φ260mm Φ252mm
    Spooler bobbin size Φ400mm-Φ630mm/max
    Bobbin loading& unloading type double end thimble
    Traversing unit 90W strap speed-down Motor type
    Main motor 37KW 55KW 37KW 37KW
    Spool motor 11KW 11KW 11KW 11Kw
    Transmission type By precision ground gears By chain
    Revise system PID Synchronous control spooler
    Detecting device Weight balance by swing arm
    Tension control By air pressure adjust.
    Max.loading capacity 500KG/MAX
    Brake Disc brake
    Lubrication type for bearing Oil immersion
    Lubrication type Water imref2type3pry type Full dip-in spray type
    Power source 380V 50/60HZ
    Lubrication oil capacity 100Liter/Minute
    Dimension 3500*1200*1250 2100*1022*995 5000*2500*2000 5000*2500*2000
    Weight 4500KG 5100KG 3000KG 3000KG

Related Products

Suzhou Hengxie Machinery Co., Ltd.

We are an enterprise specializing in the research, development, production and sales of cable equipment series products.

Suzhou Hengxie is China Intermediate Copper Wire Drawing Machine Manufacturers. Our main products of company are as following: 9, 13 dies rod breakdown machine and 17 dies medium drawing machine (chain or ground gear transmission type), medium and large drawing machine with continuous annealer, 14 dies medium and fine wire drawing machine, 22 or 24 dies fine wire drawing machine, 20 or 24 dies super fine wire drawing machine, annealing and tinning machine, medium wire drawing machine with double spooler, and hing speed auto stranding machine, etc.Our products include both domestic market and oversea market such as India, Brazil,Egypt, Malaysia, Korea, Vietnam, Syria, Kenya, Argentina, South Africa and Iran. With the concept of stable quality and mutual development, Hengxie welcomes all customers from the world to create a sincere cooperation and win-win benefit in the future.

Do You Have Any Question?

If you have any questions, please do not hesitate to contact us!

Suzhou Hengxie Machinery Co., Ltd.
News & Events
Read More

Excellent product with exquisite craftsmanship

  • Factory
    Company real picture
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Factory equipment
  • Factory
    Factory equipment
  • Factory
    Factory equipment

Industry knowledge

What are the strength necessities of the HXE-17DS Intermediate Copper Wire Drawing Machine?
The HXE-17DS Intermediate Copper Wire Drawing Machine is designed for drawing and lowering the diameter of copper cord. As such, it requires a positive quantity of power to carry out its operations correctly. However, the specific energy requirements of this specific machine may additionally vary depending on different factors including the cord diameter, material houses, and the favored output.
In wellknown, wire drawing machines devour power through numerous additives and methods concerned within the wire drawing operation. Some of those electricity-ingesting additives include the motor, gearbox, cooling gadget, lubrication machine, and other auxiliary structures.
The motor is one of the primary strength customers inside the twine drawing system. The HXE-17DS system is ready with a motor that facilitates force the cord drawing technique. The power score and efficiency of the motor play a sizable function in figuring out the energy requirements of the machine. However, without precise technical specifications for the HXE-17DS machine, it is difficult to provide an accurate estimate of the motor's strength score and electricity intake.
Another aspect contributing to the strength necessities is the gearbox. Gearboxes are used to transmit torque efficaciously from the motor to the twine drawing dies. The strength losses associated with gearboxes depend upon their design, performance, and renovation. Additionally, cooling structures are vital for dissipating heat generated in the course of the wire drawing manner. These structures may use lovers or water to calm down the machine, as a result contributing to the general energy consumption.
Lubrication is crucial for attaining easy cord drawing operations. The device may also require the application of lubricants to reduce friction among the wire and the dies. Depending at the lubrication approach, energy can be required for pumping and distributing the lubricant flippantly, which may additionally vary primarily based at the specific lubrication machine.
Apart from those additives, different auxiliary structures may additionally devour strength, together with manipulate structures, sensors, and safety devices. These systems make certain the clean operation of the wire drawing machine and contribute to the overall electricity consumption.
Can HXE-17DS Intermediate Copper Wire Drawing Machine manage other substances aside from copper?
The HXE-17DS Intermediate Copper Wire Drawing Machine is designed particularly for the drawing of copper wires and may not be suitable for handling other materials. This system is engineered to draw copper wire into smaller diameters via pulling it via a series of dies. It utilizes a motor-pushed capstan that constantly pulls the cord via the die, decreasing its diameter inside the manner.
Copper cord drawing machines are designed to work with the mechanical homes of copper, inclusive of its malleability and ductility. Copper twine is less difficult to attract in comparison to other materials because of its low friction houses and high thermal conductivity. Other materials, which includes metal or aluminum, may have exclusive mechanical properties that might pose demanding situations for the twine drawing procedure.
Different materials require specific die designs and lubricants to make certain smooth and efficient drawing. Using the incorrect die design or lubricant for a selected cloth can result in terrible great wire or damage to the machine. The HXE-17DS is in particular designed and optimized for the drawing of copper twine, so it could now not have the correct functions or abilities to effectively deal with other substances.
Additionally, unique materials may additionally have distinctive electrical conductivity requirements. Copper wire is thought for its excessive electrical conductivity, which is why it is extensively used in electrical applications. Other materials might not meet the desired electric conductivity ranges, and using them for precise applications might also bring about overall performance issues.
The HXE-17DS Intermediate Copper Wire Drawing Machine isn't intended to deal with substances apart from copper. It is mainly designed and optimized for the drawing of copper cord, taking into consideration its mechanical homes and electric conductivity requirements. Using this machine with other materials might not yield optimum results and will doubtlessly harm the system.
