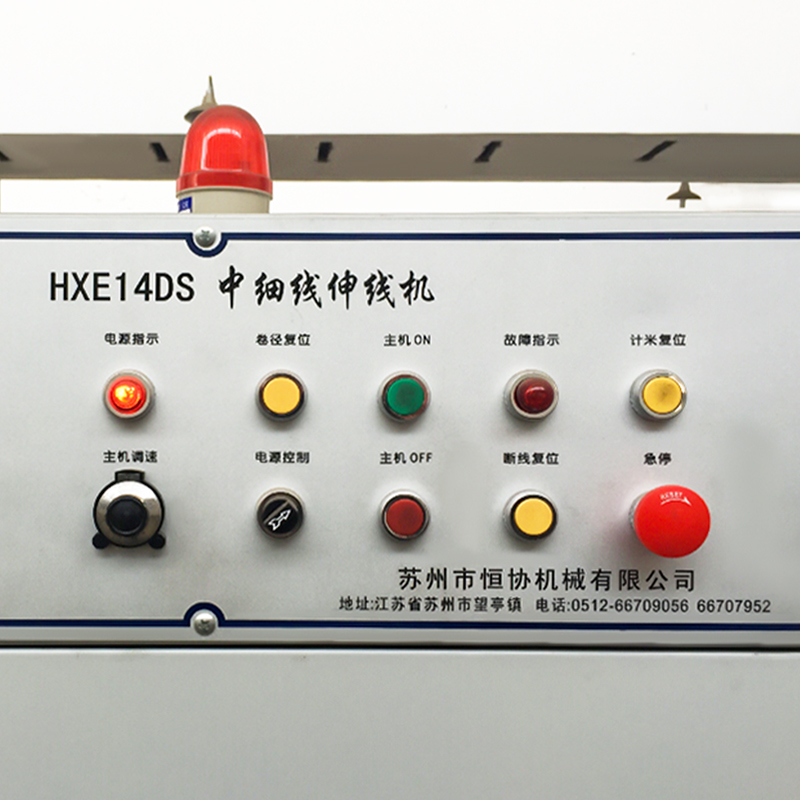

HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine
  • HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine
  • HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine
  • HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine
  • HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine

HXE-22DS/24DS High-speed Medium & Fine Wire Drawing Machine

+86-15006209216 Contact Us
High-speed fine wire drawing machines are advanced pieces of equipment designed to transform thicker wires into finer ones through a process called wire drawing. This process involves pulling the wire through a series of dies, reducing its diameter while improving its surface finish. With their ability to produce wires of exceptional quality, these machines have become indispensable in industries such as electrical, automotive, and telecommunications.
PREV：HXE-22DW/24DW High-speed Wire Drawing Machine-Horizontal Type
NEXT：HXE-22DS High-speed Fine Wire Drawing Machine
  • Description
  • Machine type HXE-22DS HXE-24DS HXE-14DS
    Inlet diameter(mm) Φ0.6-Φ1.2 Φ0.5-Φ1.0 Φ0.8-Φ1.6
    Outlet diameter(mm) Φ0.1-Φ0.32 Φ0.08-Φ0.25 Φ0.25-Φ0.6
    Max. line speed (MPM) 2500 2500 1500
    Die number 22 24 14
    Slip ratio of machine 15% 13% 15%
    Slip ratio of fix speed capstan 8% 8% 8%
    Capstan Ceramic plasma Ceramic plasma Ceramic plasma
    Max.capstan diameter(mm) Φ242 Φ242 Φ316
    Fix speed capstan diameter(mm) Φ207 Φ207 Φ268
    Frame Iron cast Welded by steel plate
    Main motor 11KWthree phase AC motor 15KW three phase ACmotor
    Spool motor 3.7KW three phase AC motor 5.5KW three phase ACmotor
    Revise system synchronous control spoole
    Inverter control Inverter control
    Transmission type Flat belt Synchronous belt
    Pay-off method Over-head
    Traversing unit Flat belt + synchronous motor
    Tension control Weight balance by swing arm
    Lubrication type Spray type
    Applicable spooler size Φ300 Φ300 Φ300~Φ400
    Spooler capacity 50-60 50-60 50-80
    Bobbin loading&unloading type Shaft type
    Power source 380V
    Brake Magnetic brake
    Dimension 2050L×1600W×1900H 2050L×1600Wx1900H 2600L×1600W×1900H
    Weight 2500 2500 2200
