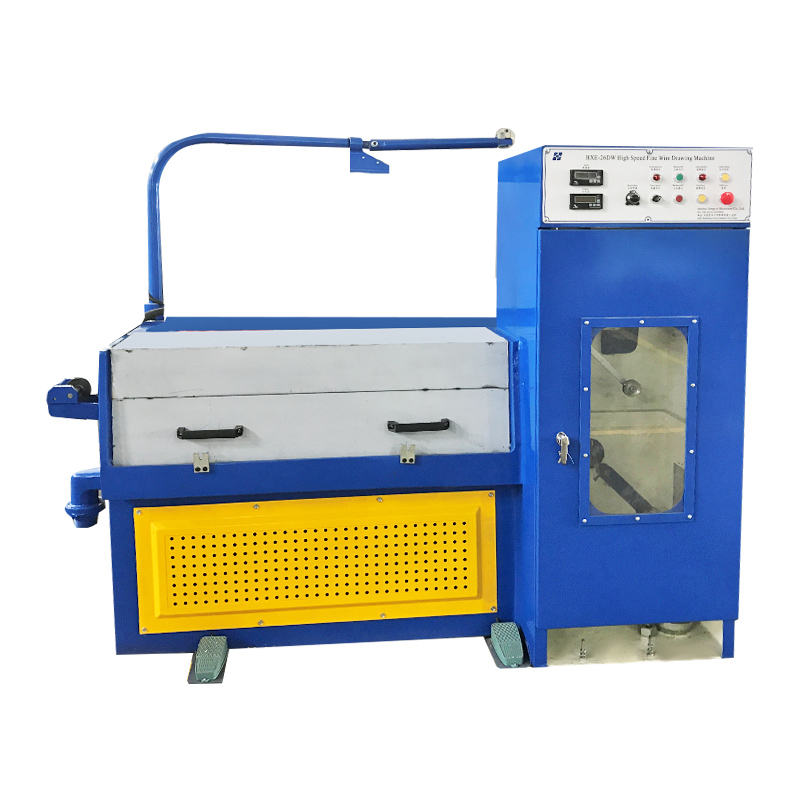

HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine
  • HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine
  • HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine
  • HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine

HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine

+86-15006209216 Contact Us
The aluminum magnesium alloy fine wire drawing machine is a state-of-the-art equipment designed specifically for drawing fine wires with precision and efficiency. It utilizes advanced techniques to transform raw materials into high-quality wires that meet the stringent requirements of various industries. This machine boasts a robust construction, ensuring durability and longevity, while its user-friendly interface makes it easy to operate. One of the key advantages of the aluminum magnesium alloy fine wire drawing machine is its ability to achieve unparalleled precision. It is equipped with advanced controls and mechanisms that ensure consistent wire diameter throughout the drawing process. With high drawing speeds and minimal downtime, it significantly increases productivity and reduces overall manufacturing costs.
PREV：No previous product
NEXT：No next product
  • Description
  • Machine type HXE-30DA HXE-28DA
    Inlet diameter(mm) Φ1.17 Φ0.8mm~Φ1.2mm
    Outlet diameter(mm) Φ0.1-Φ0.3 Φ0.1mm- Φ 0.45mm
    Max. line speed(MPM) 2500 2000
    Die number 30 28
    Slip ratio of fix speed capstan 8% 8%
    Slip ratio of machine 15%-10.5%+8% 13%
    Capstan cereamic plasma cereamic plasma
    Max.capstan diameter(mm) Φ315 Φ242
    Fix Speedcapstan diameter(mm) Φ207 Φ207
    Frame welded steel plate welded steel plate
    Main motor 5.5kw 3 phase AC motor 7.5kw 3 phase ACmotor
    Spool motor 2.2kw 3 phaseACmotor 2.2kw 3 phase AC motor
    Revise system synchoronous control synchoronous control
    Inverter control inverter control inverter control
    Transmission type flat belt flat belt
    Pay-off method over head over head
    Traversing unit flat belt+synchoronous motor flat belt+synchoronous motor
    Tension control weight balance by swing arm weight balance by swing arm
    Lubrication type spray spray
    Applicable spooler size (mm) 300 300
    Spooler capacity (kg) 20-30 20-30
    Bobbin loading&unloading type shaft type shaft type
    Power source 380v 380V
    Brake magnetic brake magnetic brake
    Dimension 1700Lx200Wx850H 1700Lx1200Wx 1850H
    Weight 2700 2700

Related Products

Suzhou Hengxie Machinery Co., Ltd.

We are an enterprise specializing in the research, development, production and sales of cable equipment series products.

Suzhou Hengxie is China HXE-30D Aluminum Magnesium Alloy Fine Wire Drawing Machine Manufacturers. Our main products of company are as following: 9, 13 dies rod breakdown machine and 17 dies medium drawing machine (chain or ground gear transmission type), medium and large drawing machine with continuous annealer, 14 dies medium and fine wire drawing machine, 22 or 24 dies fine wire drawing machine, 20 or 24 dies super fine wire drawing machine, annealing and tinning machine, medium wire drawing machine with double spooler, and hing speed auto stranding machine, etc.Our products include both domestic market and oversea market such as India, Brazil,Egypt, Malaysia, Korea, Vietnam, Syria, Kenya, Argentina, South Africa and Iran. With the concept of stable quality and mutual development, Hengxie welcomes all customers from the world to create a sincere cooperation and win-win benefit in the future.

Do You Have Any Question?

If you have any questions, please do not hesitate to contact us!

Suzhou Hengxie Machinery Co., Ltd.
News & Events
Read More

Excellent product with exquisite craftsmanship

  • Factory
    Company real picture
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Factory equipment
  • Factory
    Factory equipment
  • Factory
    Factory equipment

Industry knowledge

What Differentiates Our Aluminum Magnesium Alloy Fine Wire Drawing Machine?
In the arena of cord drawing machines, our Aluminum Magnesium Alloy Fine Wire Drawing Machine stands proud. With its unique parameters and particular abilities, know-how its differentiating elements is important for capacity customers and organization fanatics.
Unveiling the Distinctiveness:
Our Aluminum Magnesium Alloy Fine Wire Drawing Machine is a pinnacle of engineering excellence in the twine drawing enterprise. Its awesome talents, coupled with superior specifications, set it other from conventional cord-drawing machines. Let’s delve into what makes this product terrific:
1. Unmatched Precision and Range:
The device gives an extensive range, managing an inlet diameter varies from Φ0.8mm to Φ1.2mm and an outlet diameter from Φ0.1mm to Φ0.45mm. This staggering range permits precision drawing and shaping, catering to various industry wishes. The die wide variety, line pace, and slip ratios are meticulously designed to make certain extraordinary output throughout several cord diameters.

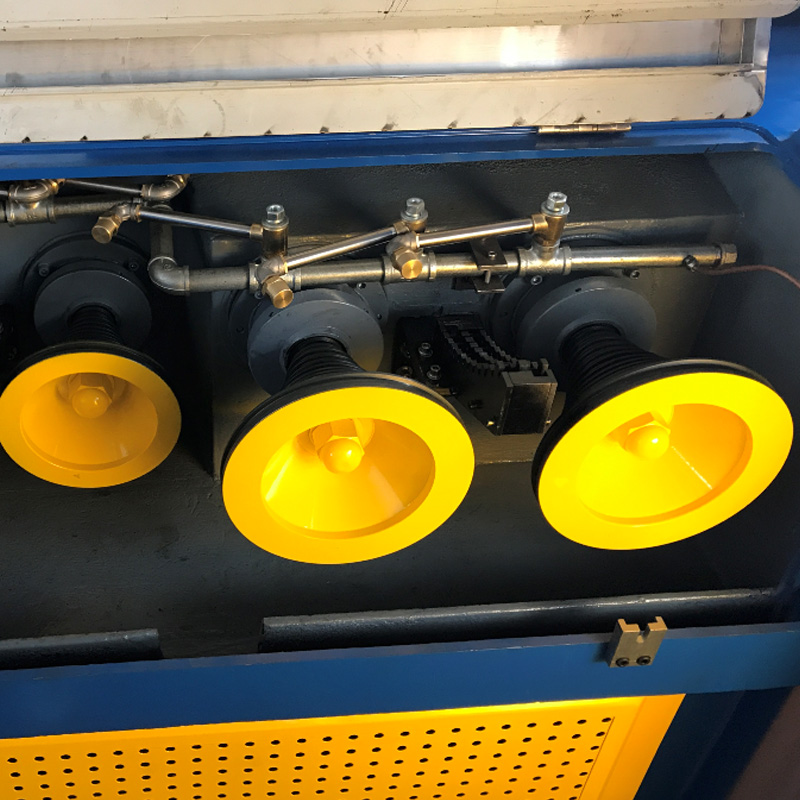

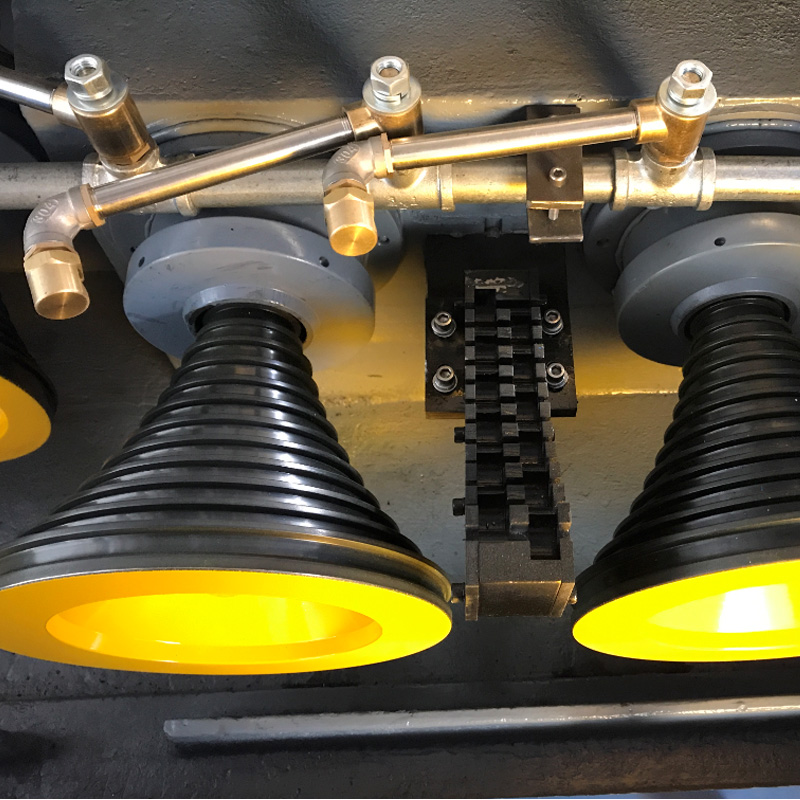

2. Cutting-Edge Capstan Technology:
Equipped with ceramic plasma capstans, this device guarantees excessive efficiency and durability throughout the twine drawing approach. The capstan diameters, every most and glued tempo, are optimized for more potent performance, with the Φ315mm and Φ207mm diameters tailored for green drawing throughout a big spectrum of wire sizes.
3. Enhanced Power and Performance:
The essential motor, a strong 7.5kw 3-section AC motor, and the spool motor, a 2.2kw three-segment AC motor, make sure steady and powerful operation. This improved energy allows the gadget to address varying materials and cord thicknesses, maintaining first-rate efficiency in the course of the manufacturing manner.
4. Sturdy Construction and Framework:
Crafted from welded steel plate frames, this gadget guarantees stability and sturdiness. The robust shape offers a steady base for operations, lowering vibrations and making sure smooth, uninterrupted twine drawing.
5. Optimized Slip Ratios:
The system's slip ratios on each of the restore pace capstan and the gadget itself are engineered to provide the most perfect manipulation over the drawing way. These ratios, combined with the wide variety of dies and line speeds, allow for unique modifications, contributing to the device's adaptability to one-of-a-kind alloy substances and twine diameters.
Our Aluminum Magnesium Alloy Fine Wire Drawing Machine sticks out within the business enterprise because of its whole range, cutting-edge generation, sturdy creation, and optimized performance. Its capability to deal with a massive variety of cord thicknesses even as ensure precision and efficiency gadgets it apart from conventional wire drawing machines. This system represents a jump ahead inside the industry, assembly the evolving goals and demanding situations of modern-day cord production techniques.
At our facility, we prioritize innovation and amazing, ensuring that our Aluminum Magnesium Alloy Fine Wire Drawing Machine isn't just a product but a solution for groups in search of outstanding cord drawing skills.
Contact us for extra facts and discover how this system can revolutionize your cord drawing methods.
